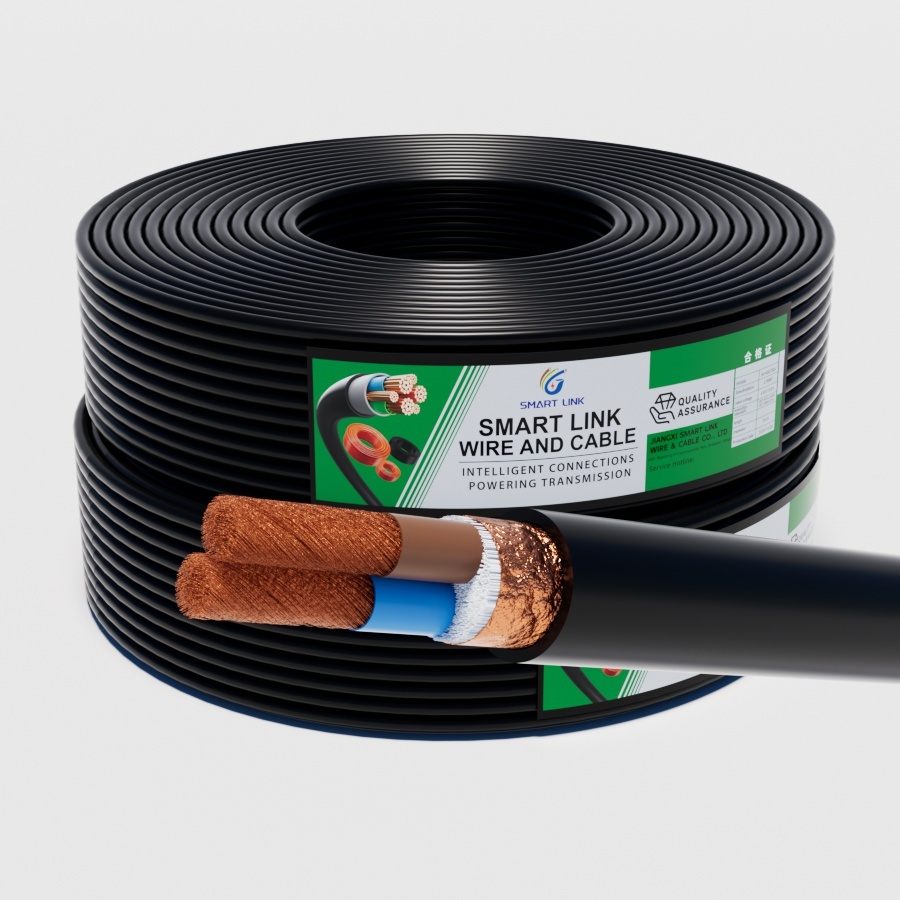

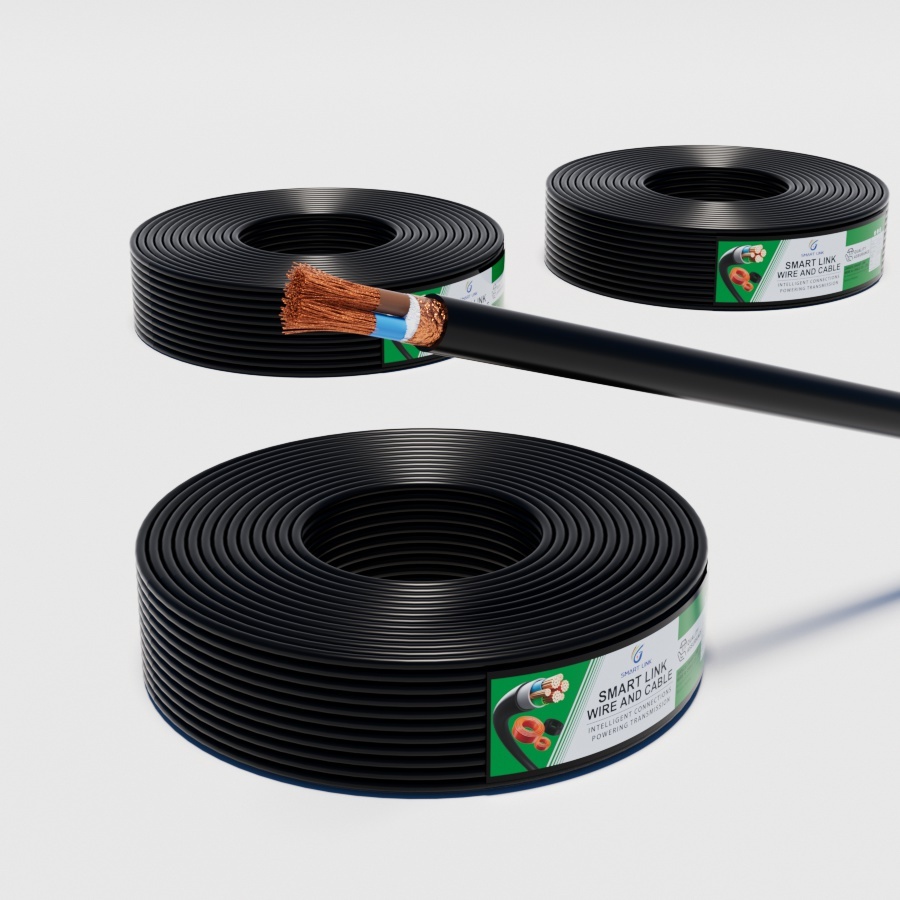

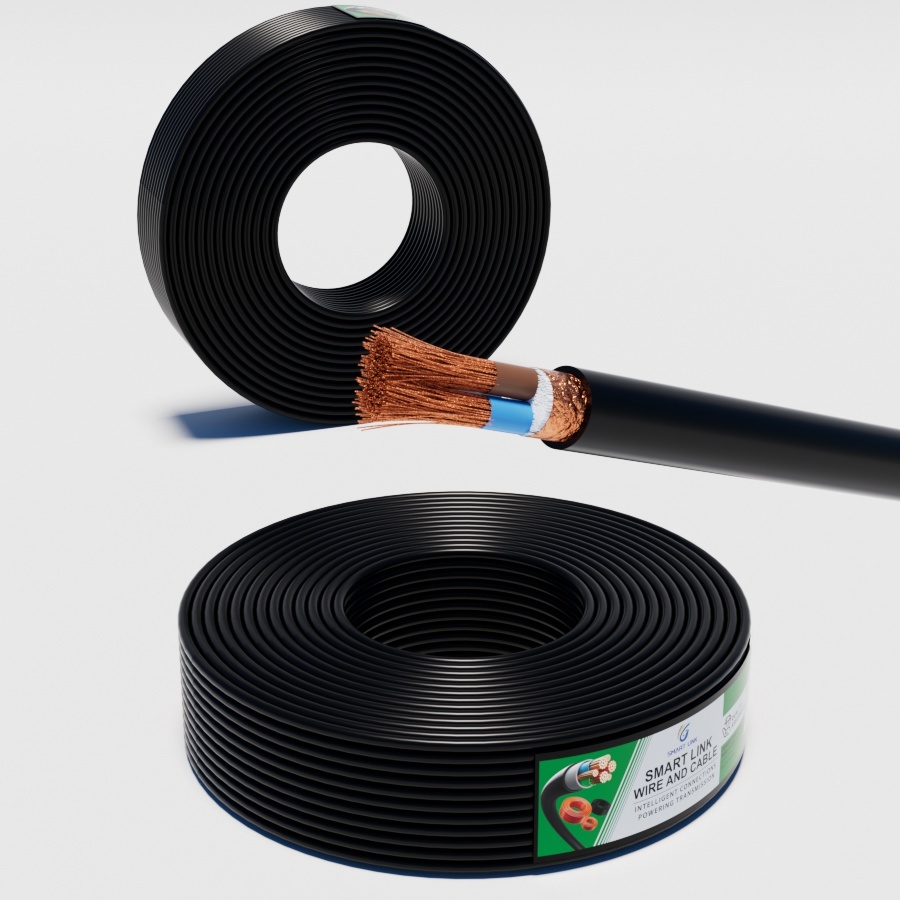

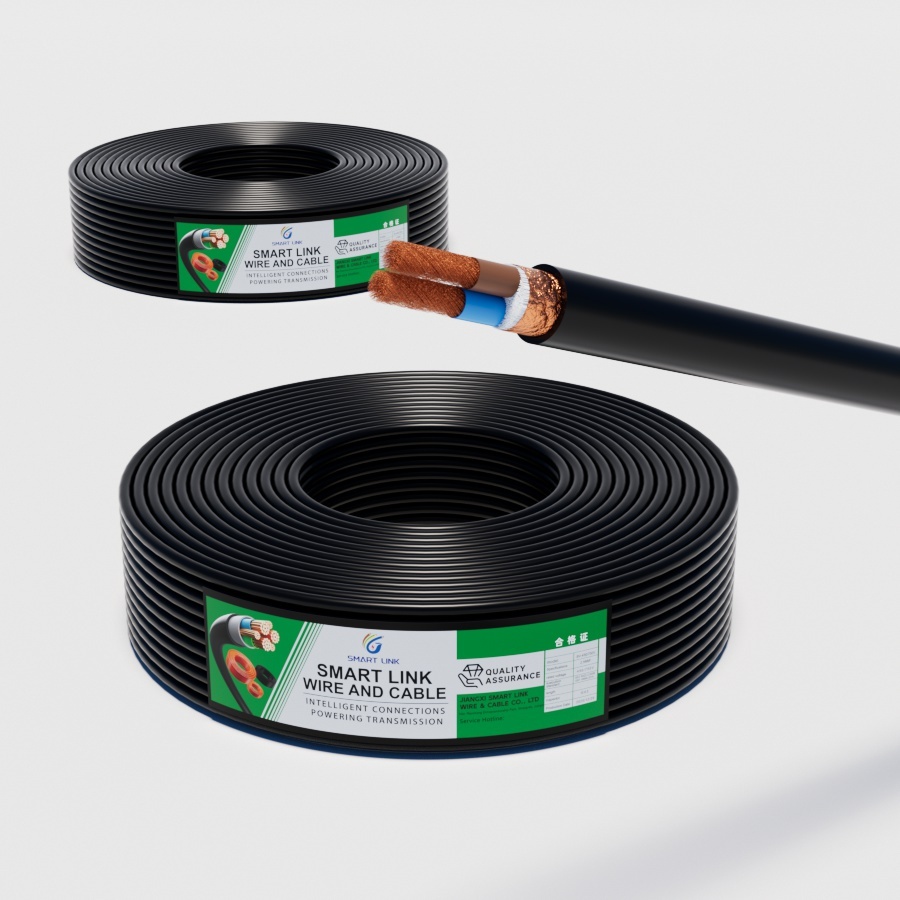

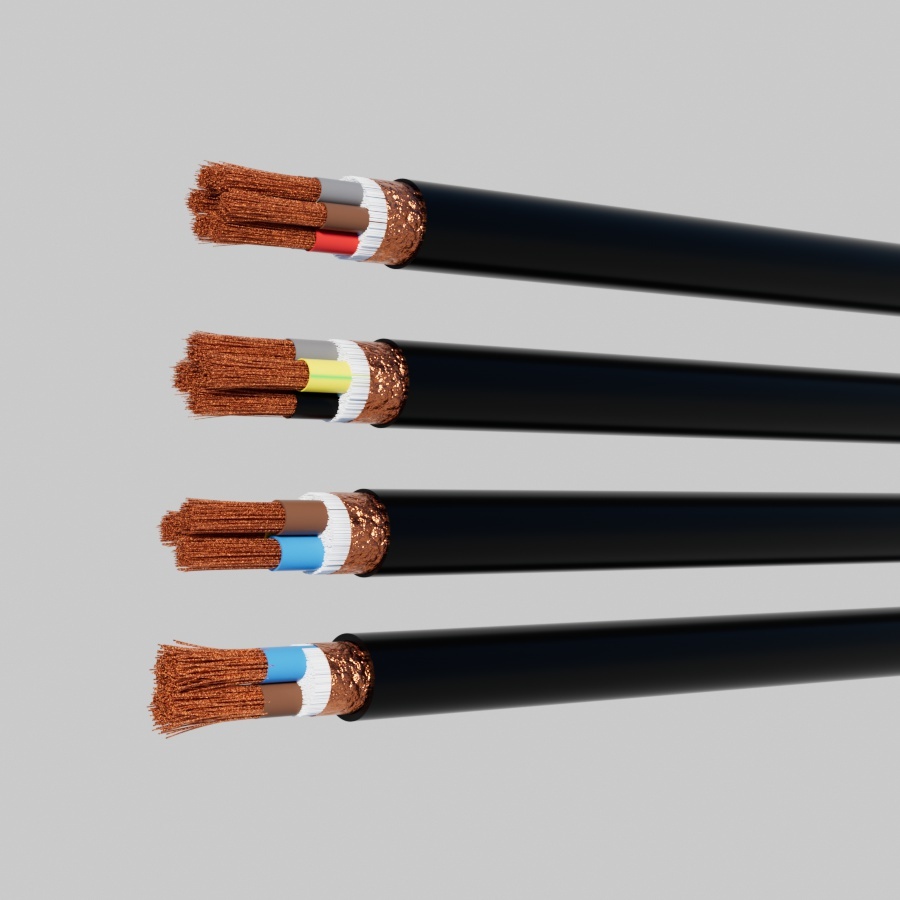

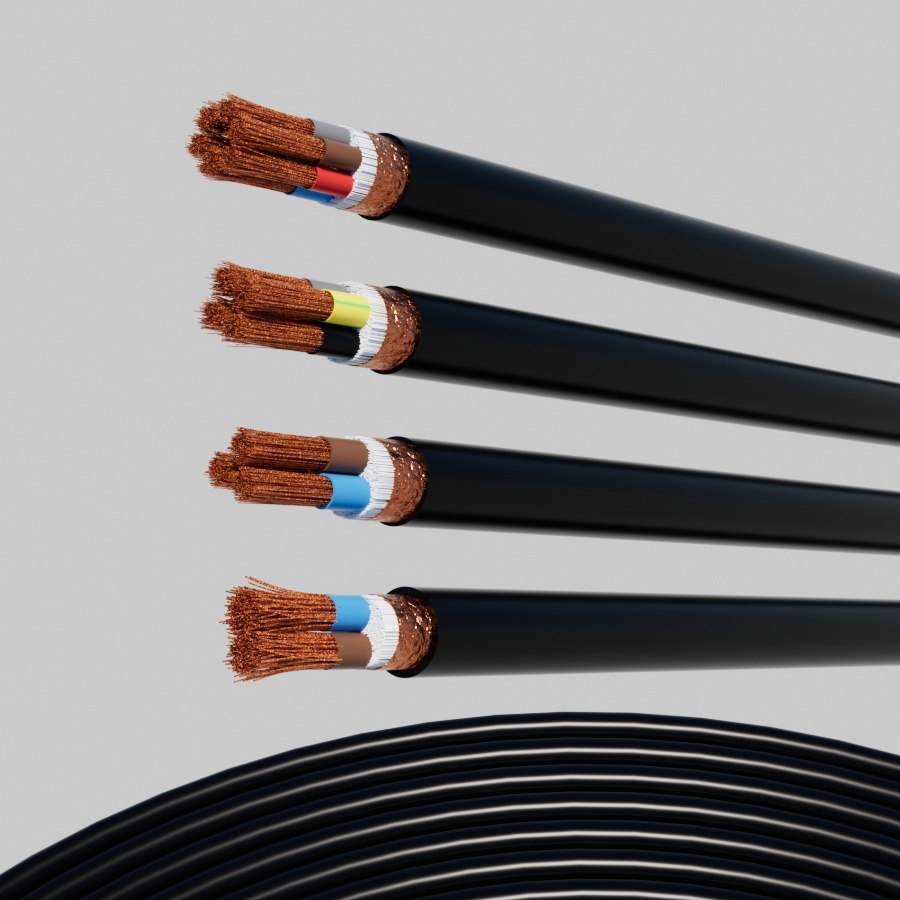

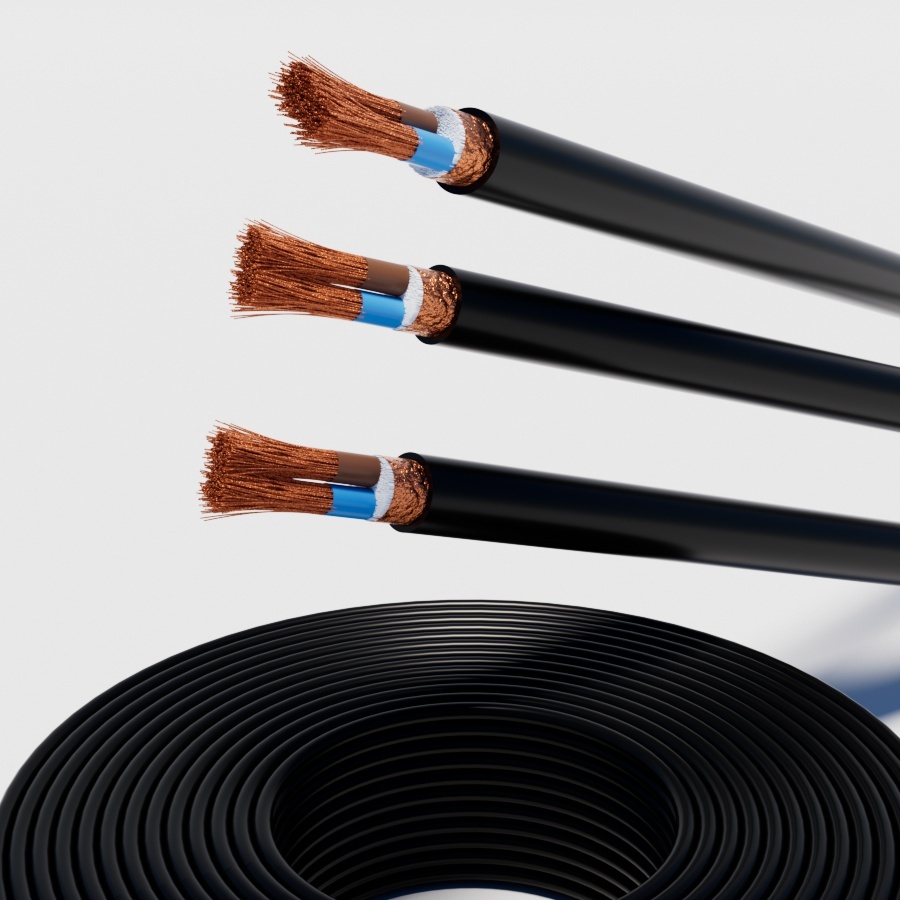

Name: RYJS
Brand: Jiangxi Smart Link Wire And Cable Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Description

Features

The core features of RYJS control cable (cross-linked polyolefin insulated twisted connection flexible wire) focus on "safety and environ- mental protection+strong anti-interference+high tenderness resistance", making it the preferred choice for high demand scenarios. It adopts multi strand thin copper wire twisted soft conductor, with good flexibility, small bending radius, convenient threading and complex path wiring, suitable for frequent bending scenarios. The conductor is made of high-purity copper material, paired with cross-linked polyole- fin insulation layer. The rated voltage is 300/300V-450/750V, and the long-term working temperature can reach 70 ℃ -105 ℃. It has excellent temperature and aging resistance. The core advantage lies in the twisted pair structure, which can reduce electromagnetic interference. The mainstream derivative models (WDZ-RYJS, WDZN-RYJS) have low smoke and halogen-free, flame retardant or fire-re- sistant characteristics, no toxic gases and less smoke during combustion, and the insulation layer is wear-resistant and corrosion-resistant. The specifications are rich (mainly 0.5-6mm ² wire diameter), balancing safety and practicality.

Applications

The application of RYJS control cables focuses on low-voltage scenarios that require safety, environmental protection, and anti-interference. They are used for weak current signal transmission such as fire alarms and security monitoring in residential and office buildings, as well as for equipment control circuits in densely populated places such as hospitals and schools. They can also be used for signal connections in data rooms and precision instrument workshops. At the same time, they are suitable for commercial and public building wiring with low smoke and halogen-free requirements, meeting the needs of safe and anti-interference low-voltage signal transmission and low-power power supply.

Specification Parameters

Model	Insulation Thickness	Core Number	Cross Section	Conductor Material	Insulation Color
WDZBN-RYJS-2*1 - RB	0.8mm	2	2*1mm²	Oxygen-free Copper	Red/Black
WDZBN-RYJS-2*1 - YG	0.8mm	2	2*1mm²	Oxygen-free Copper	Yellow/Green
WDZBN-RYJS-2*1.5 - RB	0.8mm	2	2*1.5mm²	Oxygen-free Copper	Red/Blue
WDZBN-RYJS-2*1.5 - RY	0.8mm	2	2*1.5mm²	Oxygen-free Copper	Red/Yellow
WDZBN-RYJS-2*1.5 - RG	0.8mm	2	2*1.5mm²	Oxygen-free Copper	Red/Green
WDZBN-RYJS-2*1.5 - RB	0.8mm	2	2*1.5mm²	Oxygen-free Copper	Red/Black
WDZBN-RYJS-2*1.5 - YG	0.8mm	2	2*1.5mm²	Oxygen-free Copper	Yellow/Green
WDZBN-RYJS-2*1.5 - RB	0.8mm	2	2*1.5mm²	Oxygen-free Copper	Red/Black
WDZBN-RYJS-2*1.5 - YG	0.8mm	2	2*1.5mm²	Oxygen-free Copper	Yellow/Green
WDZBN-RYJS-2*2.5 - RB	0.8mm	2	2*2.5mm²	Oxygen-free Copper	Red/Blue
WDZBN-RYJS-2*2.5 - RY	0.8mm	2	2*2.5mm²	Oxygen-free Copper	Red/Yellow
WDZBN-RYJS-2*2.5 - RG	0.8mm	2	2*2.5mm²	Oxygen-free Copper	Red/Green
WDZBN-RYJS-2*2.5 - RB	0.8mm	2	2*2.5mm²	Oxygen-free Copper	Red/Black
WDZBN-RYJS-2*2.5 - YG	0.8mm	2	2*2.5mm²	Oxygen-free Copper	Yellow/Green
