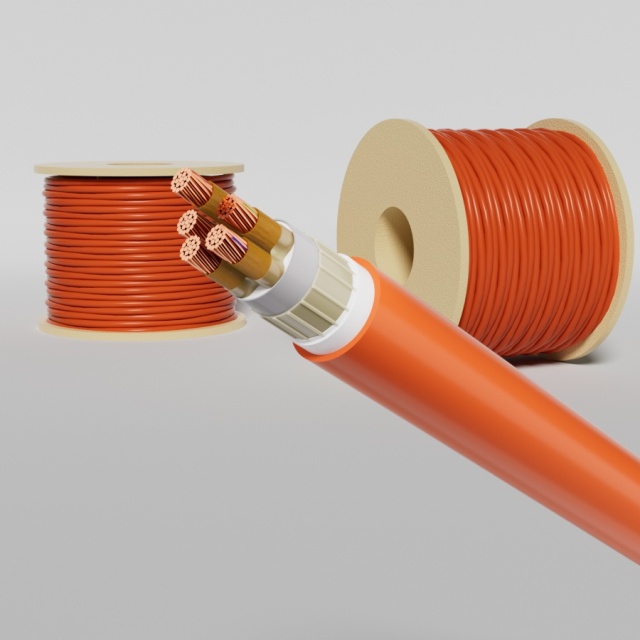

Name: NG-A (BTLY)
Brand: Jiangxi Smart Link Wire And Cable Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Description

Features

NG-A (BTLY) power cable is a flexible isolated mineral insulated fire-resistant cable, with core features focusing on "super fire resistance+- flexible convenience+multi effect protection". It can pass the rigorous fire resistance assessment of BS6387, and can provide stable power supply for 3 hours under 950 ℃ flame. It can also withstand water spray and knocking vibration, and has low smoke, halogen-free, and non-toxic gases during combustion. Using multi stranded copper conductors and continuous extruded aluminum sheaths, it has good flexibility and light weight, and does not require additional conduit for installation. It can also be customized and delivered as a whole without joints. The aluminum sheath can also serve as a grounding wire. At the same time, it has high mechanical strength, can still work normally even after one-third of the diameter deformation, and has waterproof, corrosion-resistant, rodent and ant resistant, and radiation resistant characteristics. It has low line loss and strong overload capacity, stable working temperature, long service life, rated voltage of 0.6/1kV, and explosion-proof performance, suitable for various complex working conditions.

Applications

The application scenarios of NG-A (BTLY) power cables focus on fire and explosion prevention and flexible laying requirements. They are not only used for fire emergency circuits in densely populated areas such as high-rise buildings and hospitals, but also suitable for key power supply lines in subways and tunnels. They can also be applied to high-risk environments such as chemical and mining industries, as well as important facilities such as data centers and nuclear power plants for power distribution, meeting high fire prevention require- ments and flexible laying of medium and low voltage power supply needs.

Specification Parameters

Model	Cross Section	Voltage	Conductor	Strand	Core
NG-A(BTLY) 1*1.5	1*1.5mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*2.5	1*2.5mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*4	1*4mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*6	1*6mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*10	1*10mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*16	1*16mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*25	1*25mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*35	1*35mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*50	1*50mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*70	1*70mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*95	1*95mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*120	1*120mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*150	1*150mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*185	1*185mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 1*240	1*240mm²	0.6/1KV	Oxygen-Free Copper	1	1
NG-A(BTLY) 2*1.5	2*1.5mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*2.5	2*2.5mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*4	2*4mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*6	2*6mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*10	2*10mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*16	2*16mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*25	2*25mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*35	2*35mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*50	2*50mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*70	2*70mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*95	2*95mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*120	2*120mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*150	2*150mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*185	2*185mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*240	2*240mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 2*300	2*300mm²	0.6/1KV	Oxygen-Free Copper	2	2
NG-A(BTLY) 3*1.5	3*1.5mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*2.5	3*2.5mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*4	3*4mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*6	3*6mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*10	3*10mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*16	3*16mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*25	3*25mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*35	3*35mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*50	3*50mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*70	3*70mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*95	3*95mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*120	3*120mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*150	3*150mm²	0.6/1KV	Oxygen-Free Copper	3	3
NG-A(BTLY) 3*185	3*185mm²	0.6/1KV	Oxygen-Free Copper	3	3
